The Type 1 Communications Adapter that is built into my IBM 3174 controller can operate in a number of ways, using one of three different serial communications links - EIA (RS 232), X.21 and V.35 at the physical level and BSC or SDLC at the link protocol level.
The administrator of the 3174 configures the controller to specify what version of the physical and link layers are to be used. The microcode will check to be sure that the connected hardware is consistent with the configuration, using a few of the signal lines on the DB25 connector to interrogate the attached cable type.
The cables all have a switch, Oper/Test, that can wrap signals back to allow the microcode in the 3174 to validate the correct function of the Type 1 Communications Adapter and the rest of the controller. However, there are also Wrap Test plugs that make these same test connections along with minor differences that allow the microcode to recognize them as test plugs.
IBM has defined three wrap test plugs, one each for EIA, V.35 and X.21 physical layers. The wiring diagrams specify most of the wiring needed in these plugs but a few points are ambiguous. In one place it states that two wires are connected to each other, but not whether they are also tied to the signal ground line. Thus, I might have to make a few variants of the wrap test plugs until they are recognized as valid and work properly.
CHOSE A BREAKOUT PLUG TO ALLOW QUICK PROTOTYPING CHANGES
I could have used female DB-25 connectors and wired pins together to match the wiring diagrams. It might have required some rework if the ambiguities caused me to choose wrongly. To build a full set, at least three connectors have to be wired even if the uncertainties don't cause problems.

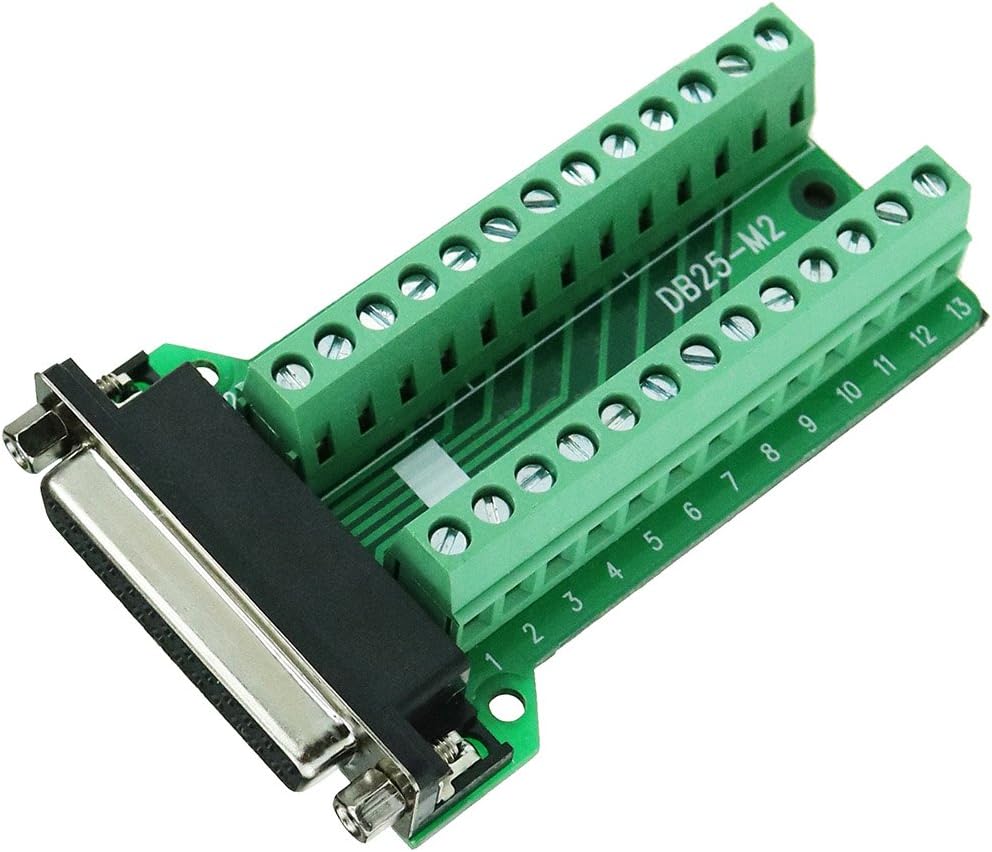

Instead, I chose a breakout board for the female DB-25 connector. This has all 25 pins routed out to terminal blocks, where I can insert and change wires rapidly to change the connections.
I will use this to build each of the three wrap-test plug types and experiment until it works properly.
